JUPITER Series - DVR170

 Live Demo


User name: user
Password: user

 PDF DVR170.pdf
H.264 D1 Res. DVR w/ Video Loop-out, Matrix and Dual Encoding Streams, 2-Ch Playback Simultaneous - 4Ch

H.264 D1 Res. DVR w/ Video Loop-out, Matrix and Dual Encoding Streams, 2-Ch Playback Simultaneous - 4Ch

H.264 compression 4-ch Video input 4-ch Audio input 2-ch Video output VGA output

1-ch Audio output Display D1 Record D1 Frame Rate 2-ch Playback

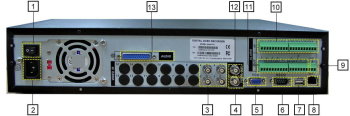

Back View

H.264 D1 Res. DVR w/ Video Loop-out, Matrix and Dual Encoding Streams, 2-Ch Playback Simultaneous - 4Ch

1. AC Input　 2. Power on/off 3. Video input
4. Video output 2 5. VGA 6. RS-232
7. USB 8. RJ-45 9. RS-485
10. Alarm input 11. Alarm output 12. Video output1
13. Audio input and output

ce mark

More Information

DVRs D1 Res. storage count
DVR client software preview
DVR center control software preview
 Features

3R alarm in alarm out HDD network PTZ bitrate D1 Frame Rate 1-ch Audio output

 Operation

front panel controller USB mouse keyboard GUI

 Application

Client software IE CMS player AVI

 Backup
Network download USB device DVD-RW HDD to pc
 Firmware Upgrade
Network RS-232
  • Features

  • H.264 compression chip, cost-effective, DSP format

  • Pentaplex operational mode : Recording, playback, remote viewing, back up, live viewing, simultaneously

  • Support Dual Encoding Streams (flexible for network transmission)

  • Support 2-ch playback simultaneously

  • Support SATA Hard Disk, up to 8pcs

  • Support USB mouse

  • 4-ch video input and 2-ch video output

  • 4-ch video loop-out and 4-ch video matrix, 1-output

  • 4-ch audio input and 1-ch audio bi-way communication

  • 16 suits of alarm inputs and 6 suits of alarm outputs

  • Resolution - live view

    • 720 x 480 for NTSC

    • 704 x 576 for PAL

  • Resolution - recording

    • 720 x 480 for NTSC

    • 704 x 576 for PAL

  • Resolution - recording

    • NTSC : 4Chx30fps = 120fps for D1 Resolution

    • PAL : 4Chx25fps = 100fps for D1 Resolution

  • DVD-RW, CD-RW, USB memory and Network backup

  • RS-485 port for Pan/Tilt/Zoom control

  • Large capacity of storage : up to 8pcs HDD @ 1TB each(8TB together)

  • Remote monitor : Support multi-channel remote view simultaneously (4 Channels at most)

  • Playback: Channel selectable by single touch button during playback

  • Remote monitor, setting, playback, firmware upgrading through IE browser or bundled software

Package Contains

  • DVR x 1

  • Power Cable x 1

  • Ethernet Cable x 1

  • Extensional Cable x 1

  • Remote Control x 1

  • USB Mouse x 1

  • Accessories x 1

  • CD-ROM (included User Manual, bundled software..) x 1

Packing Information
Carton
Quantity  1 set/ctn
Dimension  54x54x24 cm/ctn
Gross weight  12 kgs/ctn
Net weight  11 kgs/ctn

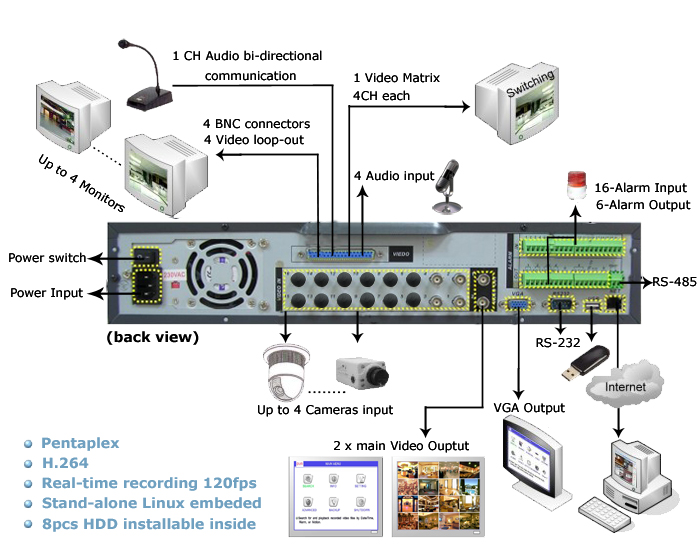

 Application diagram

30450711SL
