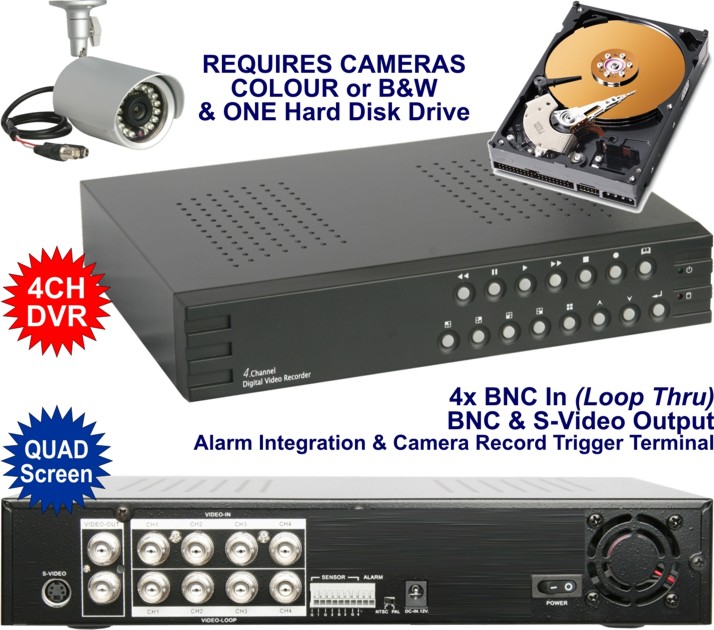

DVR110 - Digital Video Recorder (DVR)

Key Features:
Easy Playback and Forward/Reverse/Search
Compatible with most home security alarm system
Recording activated by motion detector
(alarm and motion detector are optional)
Alarm or motion detection recording
High resolution
Adjustable recording frame rate and image quality for more than one month continuously data recording
Real-time digital recording of up to 4 cameras simultaneously
 Specifications:
System Function
Operation System
RTOS
Video Input
4 BNC, NTSC/PAL composite
Video Output
2 BNC, NTSC/PAL composite
Compression Format
MJPEG
Monitoring Mode
Resolution NTSC: 720x480; PAL: 720x576
Display Speed NTSC: 120 fps; PAL:100fps
Split Screen 1/4 split
Recording Mode
Resolution NTSC: 640x480, 320x240160x120
PAL: 704x576, 352x288, 176x144
Quad/Single Mode: 640x224
Recording Speed
Quad: NTSC: Max. 30fps, PAL: Max. 25fps
Single: NTSC: Max. 7.5fps, PAL: Max. 6.25fps
Recording Mode
Continuous Recording/Scheduled Recording/Alarm Recording
Playback Mode
Quad/Single
3 degree Fast Forward
1 degree Rewind
Pause and Stop
Image Quality Low, Normal, High
Search Mode
By Date, Time, Events
Storage Capacity
Hard Disk Drive
Standard 80GB HDDx1
Alarm Function
DI/DO
4in/1Relay out
Back up
Data Export
VCR (optional)
Others
Dimension/ Weight
285x230x50 cm (L x W x H)/ 17kgs
Operation Temperature
-5°C ~ 45°C
Operation Humidity
35%~80%
Power Requirement
100~240VAC
