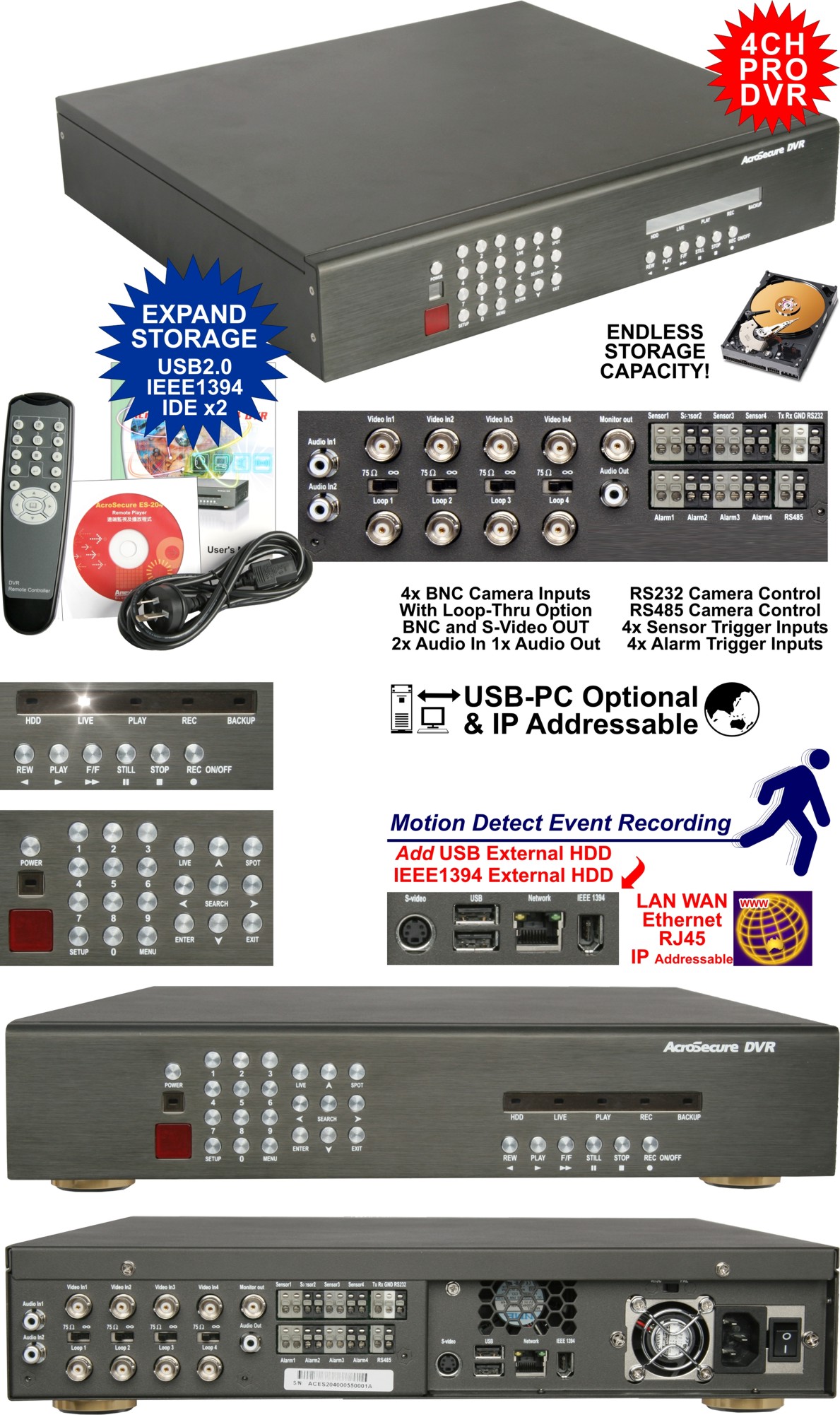

| Key Features:
|
 |
Stand Alone
NON-PC embedded system offering maximum stability |
|
Embedded
Linux Operating System |
|
Support Real
time Record and Real time Audio |
|
Support
internal up to 2 IDE HDD (removable) |
|
Storage
extend through IEEE 1394 |
|
Remote
Monitoring, Access and backup via Client S/W |
|
Image file
protection by Lock/Unlock function |
|
File backup – via IEEE
1394, Network, USB devices | |
|
|
|
High display resolution up to 720X480 |
|
|
MPEG2 compression
algorithm |
|
Selectable compression rate (Standard, High 1, High
2) |
|
Support recording
mode by manual recording, event/alarm recording, schedule
recording and motion detection recording |
|
Support
Multi-tasking function for simultaneous recording, playback
and remote Access |
|
Password protection
|
|
Support 2 channel
Audio recording | |
| Specifications: |
| System
Type |
|
| Video I/O |
Input |
4 Ch
Composite (BNC) |
| Output |
1 TV
Monitor Composite (BNC)
1 TV Monitor S-Video
4 Loop
Back |
| Audio I/O |
Input |
2 Ch Mono (RCA) |
| Output |
1 Ch Mono (RCA) |
| Display |
Speed |
120 fps /
100fps (NTSC/PAL) |
| Resolution |
720x480(NTSC) / 720X576(PAL) |
| Screen |
1,
4Ch |
| Recording |
Speed |
30 fps / 25
fps, 15 fps / 12.5 fps, 10 fps / 8.3 fps, 6 fps / 5 fps3 fps /
2.5 fps, 1 fps / 1 fps |
| Resolution |
360x240(NTSC) / 360X288(PAL) (each Channel) |
| Compression |
MPEG2 |
| Mode |
Normal,
Schedule, Motion Detection, Sensor |
| Compression Rate |
Standard,
High 1, High 2 |
| Pre-Alarm Record |
Yes |
| Playback |
Search Mode |
Time,
Event, List Search |
| Speed |
Forward :
x2, x4, x8, x16
Reverse: x1, x2, x4, x8, x16
Slow: x1/2,
x1/4, x1/
8Still and Frame Advance |
| Peripherals |
Sensor/Alarm |
4 In / 2
Out |
| Network |
Ethernet
(Remote Client Software Included) |
| Backup |
Network
Backup / IEEE1394 / USB |
| P/T/Z Control |
RS-485 |
| Software |
Operating System |
Embedded
Linux |
| System Control |
Front Key
Pad / IR Remote Control |
| Hardware |
HDD |
120
GB |
| Power Supply |
100-240Vac 50/60Hz |
| Dimension |
(w)x(d)x(h) | | |
