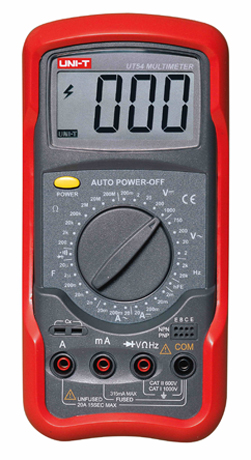

UT54
  Uni-Trend Digital Multimeters

Enlarge


UL/cUL Pending
Registered Design No.: ZL97 3 29666. 6

Download Manual


SPECIFICATIONS
Basic FunctionsRangeBest Accuracy
DC Voltage200mV/2V/20V/200V/1000V(0.5%+1)
AC Voltage2V/20V/200V/750V(0.8%+3)
DC Current2mA/20mA/200mA/20A

(0.8%+1)

AC Current20mA/200mA/20A(1%+3)
Capacitance2nF/20nF/200nF/2mF/20mF(4%+3)
Frequency2kHz/20kHz(1.5%+5)
Resistance200W/2kW/20kW/200kW/2MW/20MW/200MW(0.8%+1)
Special Functions
Transistor
Diode
Continuity Buzzer
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement10MW
Max. Display1999

GENERAL CHARACTERISTICS
Power9V Battery (6F22)
LCD Size33x65mm
Product ColourUT54 - Grey, Holster - Red
Product Net Weight580g (including holster)
Product Size190 x 88 x 34mm
Standard AccessoriesTest Lead, Battery, English Manual, Holster
Optional Accessories*Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
Standard PackingGift Box
Standard Quantity Per Carton20 pcs
Standard Carton Measurement535 x 362 x 385mm
Standard Carton Gross Weight17.4kg
