CCD Focal Length Calculator

WES Home ] Up ] [ CCD Focal Length Calculator ] DVR140 ] DVR160 ] DVR161 ] DVR316 ] DVR208 ] Cameras & Video Baluns ]


Focal Length of Lens 1/3" Imaging Sensor 1/4" Imaging Sensor
2.8mm 82° 65°
3.7mm 65° 53°
4mm 62° 50°
4.8mm 53° 42°
6mm 44° 34°
8mm 34° 27°
12mm 23° 18°
16mm 17° 13°
25mm 11°
50mm
75mm 2.5°

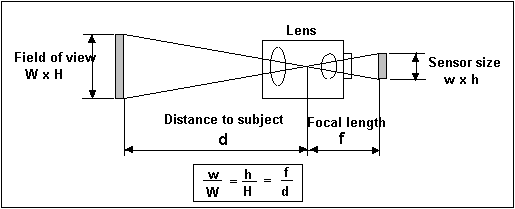

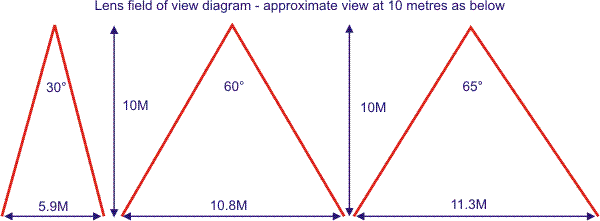

Lens field of view illustration



Car is approximately 40 metres away, shown here at different focal lengths:

Car at 40 metres through a 5mm lens
Car at 40 metres through a 25 mm lens
Car at 40 metres through a 50 mm lens
View at 5 mm focal length
View at 25 mm focal length
View at 50 mm focal length

A 65 degree camera angle will give the following view in a square room

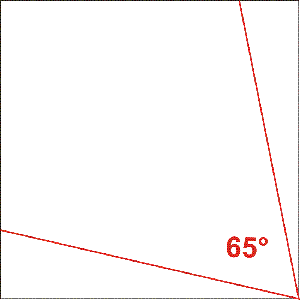

65 degree anglle in room

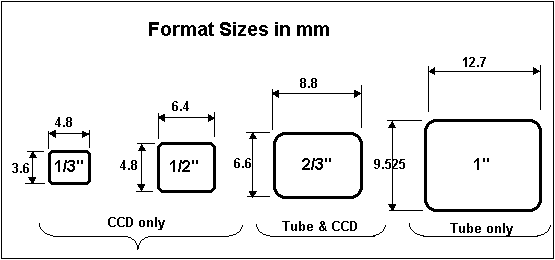

CCD Sensors are Generally 1/3 Inch, with exceptions. Please check for accurate results.
This calculator requires the use of Javascript enabled and capable browsers.


Designation
Number
Required Data Entry
CCD Size Inch
Distance From Lens To Object
Maximum Size Of Target Object


Calculated Results :

Maximum Focal Length mm
Minimum Field Of View Degrees
